BMW E85 Fuse Box Diagram with Full Layout of Fuses and Relays

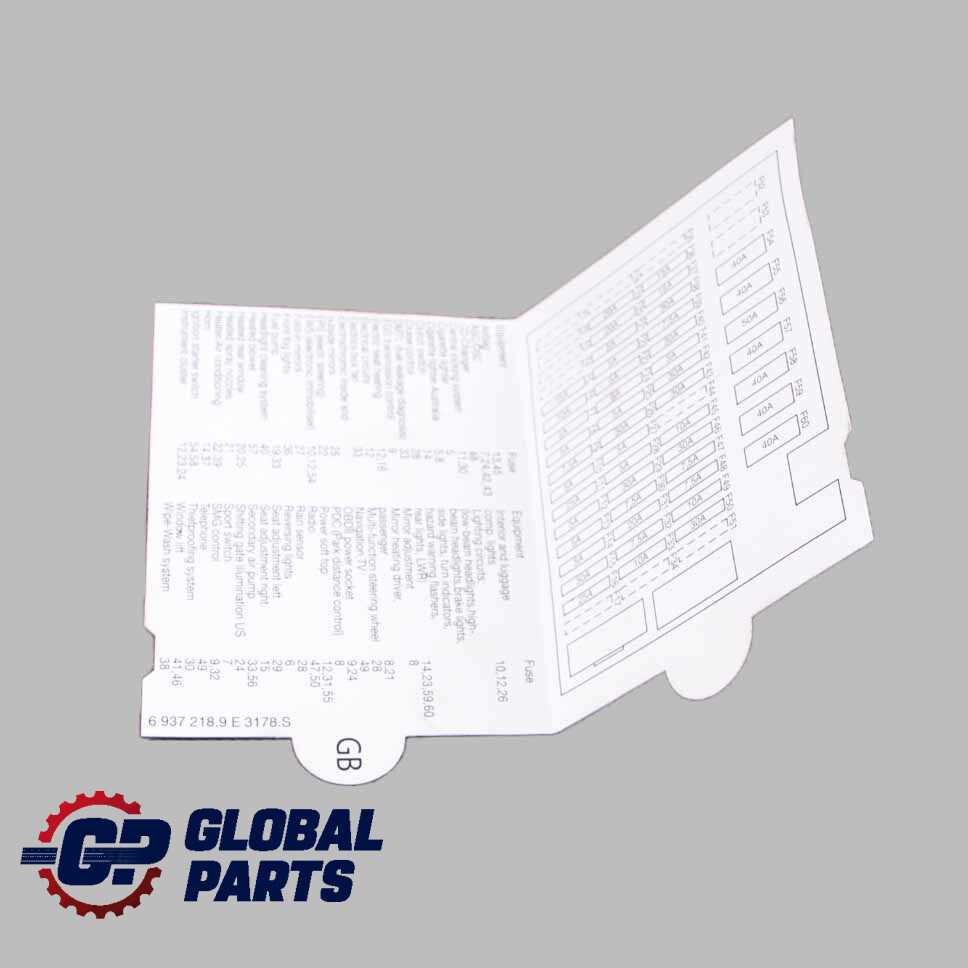

bmw e85 fuse box diagram

Access the main power distribution panel behind the glove compartment to check low-amperage circuits related to lighting, audio system, and interior controls.

This roadster uses multiple electrical distribution points, with the primary interior panel handling circuits rated between 5A and 30A. Each slot is numbered and aligned in rows, allowing quick identification of components tied to specific systems such as power windows, climate control, and onboard electronics.

In the rear compartment, a secondary distribution unit is positioned near the battery and supports higher-load circuits. These include power supply lines for engine control, convertible roof mechanism, and stability systems, with ratings often ranging from 30A to 60A.

Always match the amperage printed on each component before replacement, as incorrect ratings can lead to overheating or damage to wiring harnesses. Use a multimeter to verify continuity, since visual inspection may not reveal partial breaks.

Loose contacts and oxidation are common in rear-mounted units due to temperature changes and moisture exposure. Inspect terminals carefully and ensure all relays are fully seated to avoid intermittent faults.

BMW E85 Fuse Box Diagram with Full Layout of Fuses and Relays

Use the numbering grid printed on the panel cover to identify each circuit before removal, as this layout groups systems by function and incorrect handling may disable multiple components at once.

The interior distribution panel behind the glove compartment contains low to mid-range current links, typically from 5A to 30A, assigned to systems such as lighting, wipers, infotainment, and climate control; rows are arranged horizontally with clear numbering, allowing direct mapping between slot position and circuit role.

In the rear compartment, the power distribution unit near the battery handles higher-load circuits, including convertible roof operation, engine management supply, and stability systems, with ratings often reaching 40A to 60A and relay modules positioned alongside these high-capacity elements for switching control.

Check each component by inspecting the internal metal strip and confirming continuity with a multimeter, and avoid installing higher-rated replacements since wiring and connectors are calibrated for specific current limits, while loose contacts or oxidation in rear-mounted terminals can lead to intermittent faults that mimic component failure.

Exact location of fuse panels in BMW E85 cabin and trunk area

Open the glove compartment and release the retaining clips to access the main interior panel, as it is mounted directly behind the glovebox and not visible without removing the cover.

This cabin-mounted unit is positioned high within the dashboard structure and requires lowering the glove compartment fully; once opened, the panel reveals multiple rows of small blade-style protective elements assigned to lighting, infotainment, and control modules.

Use a flashlight to read slot numbers, since the placement deep inside the dash reduces visibility, especially in low light conditions.

In the rear section, lift the trunk floor panel to reach the secondary distribution area located next to the battery housing.

This rear-mounted unit contains higher-capacity components and relay switches tied to drivetrain and body systems, including:

  • Convertible roof motor supply circuits
  • Engine control power feed
  • Stability and traction modules
  • Central locking and alarm systems

Remove the protective cover by releasing side clips to expose internal components; the layout is compact, with larger cartridge-style links placed closer to the main power cable.

Follow this access sequence for safe handling:

  1. Switch off ignition and remove key
  2. Disconnect negative battery terminal
  3. Open glove compartment or trunk floor panel
  4. Locate the correct distribution unit

Check for moisture or corrosion in the trunk area, as this location is more exposed to condensation and temperature changes, which may affect terminal connections and lead to intermittent electrical faults.
