Access the main electrical panel behind the glove compartment to check each circuit for proper voltage. Use a multimeter to confirm continuity before replacing any connectors or relays.
Label each wire according to the printed layout on the panel cover to avoid misrouting during repairs. Red wires typically carry main power, while smaller gauge wires feed sensors and auxiliary components.
Inspect the panel for corrosion or loose connections, particularly near the relay banks. Tighten screws and clean terminals with a contact cleaner to maintain stable electrical flow.
For auxiliary accessories such as lighting or infotainment upgrades, route new circuits to the designated open slots. Do not overload existing connectors to prevent shorts or blown circuits.
Identify circuits responsible for high-draw devices like the fuel pump and air conditioning. Trace their wires carefully to avoid interference with other systems during troubleshooting.

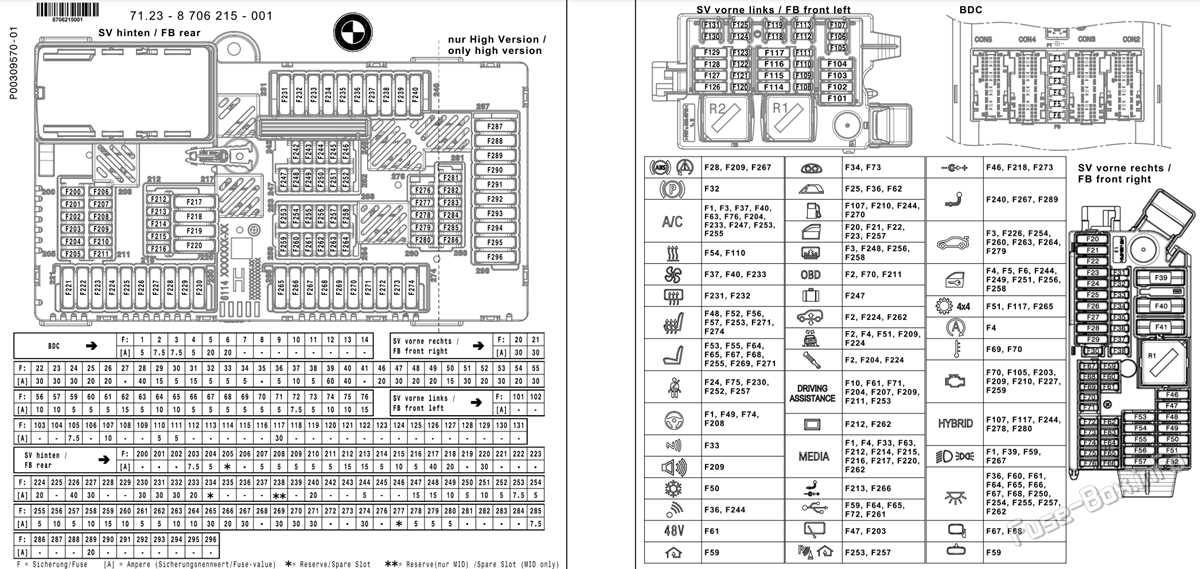

BMW 6 Series Electrical Panel Reference
Locate the main electrical panel behind the glove compartment and identify each circuit by the printed layout. Check high-current circuits first, such as the ignition, lighting, and air conditioning systems, to prevent malfunctions during testing or upgrades.
Use a multimeter to verify continuity across all connectors and terminals. Mark each connection clearly before removing or replacing relays and wiring harnesses to maintain proper routing and avoid miswiring critical components.
Identifying Main Power Distribution and Relay Locations
Access the primary electrical panel located near the battery compartment and verify all connections visually. Prioritize the main power terminals for inspection as they control high-current circuits like the starter, alternator, and lighting systems.
Check relay placement carefully to avoid confusion during maintenance. Document each relay by function, noting the color-coded wiring and identifying labels printed on the panel cover or adjacent chassis mounts.
Follow the positive and ground distribution points systematically. Use a list to trace circuits:
- Main ignition relay
- Cooling fan relay
- Fuel pump relay
- Headlamp relay
This ensures you identify all critical load paths without skipping connections.
Before removing any components, measure voltage at each terminal with a multimeter and note deviations. Confirm each relay socket for secure fit and corrosion, and clean contacts with appropriate electrical cleaner to maintain consistent performance.
