Locate the main power distribution panel under the driver-side dashboard to identify primary relays and high-current circuits. Check for labels indicating battery, ignition, and accessory lines to prevent accidental shorts during inspections.
Inspect auxiliary panels in the engine compartment and trunk area for secondary circuit connections controlling lighting, HVAC, and infotainment modules. Ensure all connectors are seated properly and free of corrosion before testing individual circuits.
Use a multimeter to verify voltage continuity across critical terminals. Focus on circuits that supply power to starter, fuel pump, and electronic control units, as these are most likely to cause operational failures if connections are loose or damaged.
Maintain a log of panel locations and circuit ratings. This record helps track maintenance, avoid overloading circuits, and quickly isolate issues in complex electrical assemblies without unnecessary disassembly.

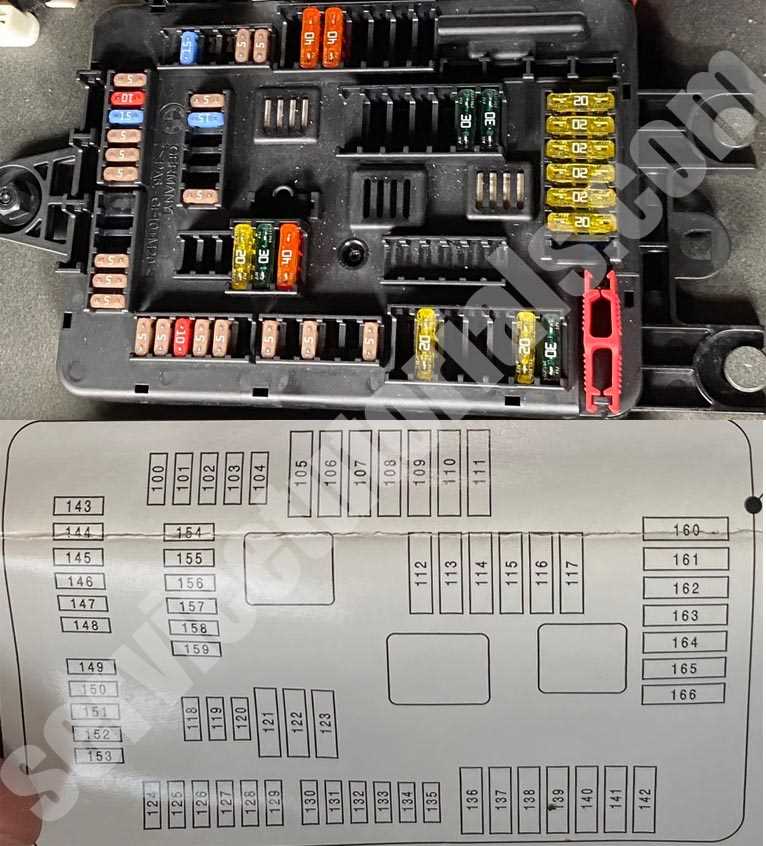

BMW 320i F30 Electrical Panel Overview
Inspect the primary electrical panel located beneath the driver-side dashboard to confirm the position of all high-current relays and circuit connectors. Identify marked lines for battery, ignition, and accessory functions before engaging any testing tools.
Check secondary panels in the engine compartment and trunk for circuits controlling headlights, climate systems, and entertainment modules. Ensure connectors are secure and terminals are free from oxidation to maintain reliable power delivery.
Trace power distribution paths using a multimeter to verify continuity and detect potential shorts. Pay particular attention to circuits supplying the starter motor, fuel system, and electronic control units, as faults in these areas often cause operational failures.
Label all connections when inspecting or servicing panels. Maintaining a detailed map of relay positions, amperage ratings, and cable routes prevents accidental miswiring during maintenance or upgrades.
Document panel conditions including any signs of wear, loose terminals, or burnt connectors. Regular monitoring allows early identification of circuit degradation and helps preserve overall electrical system performance.
Identifying Primary Power Relays and Connections
Locate the main power relay panel behind the driver-side dashboard. Begin by identifying the high-amperage relays controlling ignition, fuel, and main electronics circuits. Check that each relay clicks when the corresponding system is activated.
Inspect connector integrity by gently pulling each plug to ensure secure attachment. Loose terminals can lead to intermittent electrical faults that affect multiple modules simultaneously.
Mapping Relay Functions
- Relay 1: Ignition circuit, provides continuous 12V to ECU when key is in the start position.
- Relay 2: Fuel pump, energizes pump for engine startup and maintains pressure during operation.
- Relay 3: Cooling fans, triggers fan motors based on engine temperature sensor signals.
- Relay 4: Auxiliary systems, including interior electronics and entertainment circuits.
Trace cabling routes from each relay to verify correct connection points. Use a multimeter to confirm voltage supply under load conditions and check for voltage drops exceeding 0.3V along critical lines.
Testing and Maintenance
- De-energize circuits before testing to prevent accidental shorting.
- Measure resistance across relay contacts; values above 0.05 ohms may indicate internal wear.
- Replace any connectors showing corrosion or discoloration to ensure stable current flow.
Document all findings and mark relay positions on a reference sheet. Consistent documentation allows rapid troubleshooting during future electrical system inspections.
Perform functional checks by activating each system sequentially while monitoring relay response and voltage output. Confirm that power is consistently delivered to all dependent modules.
