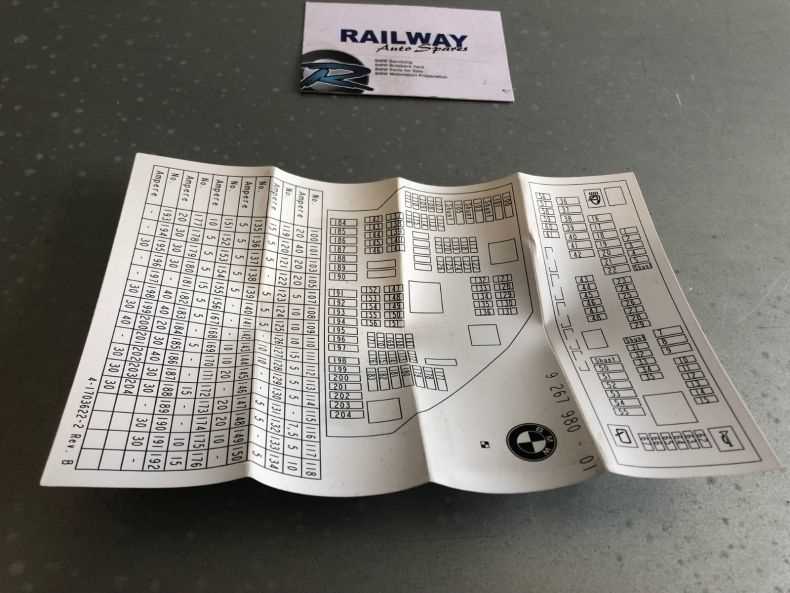

Access the electrical panel on this mid-size luxury SUV by opening the glove compartment and removing the inner trim; a second panel is positioned in the luggage area behind the side cover. Use the factory legend card stored inside the glove compartment to match each circuit with its slot. If the card is missing, identify slots by amperage markings stamped directly onto the plastic carrier–common ratings include 5A, 10A, 15A, 20A, and 30A.
The front panel typically houses circuits tied to cabin electronics: infotainment, climate control module, interior lighting, and steering column functions. For example, audio system protection is usually assigned to a 15A slot, while climate control often relies on a 20A position. The rear compartment panel supports higher-load systems such as air suspension compressor, rear defroster, and trailer interface, where 30A or higher ratings are common.
Before replacing any blown element, disconnect the negative terminal of the battery located under the cargo floor to prevent short circuits. Pull the faulty piece using the provided plastic extractor tool clipped near the panel. A broken metal strip inside indicates failure; replace it strictly with the same amperage rating to avoid wiring damage or module malfunction.
Persistent failure in the same slot signals an underlying issue–inspect connected components and wiring harnesses for insulation wear or moisture ingress. In vehicles equipped with advanced driver assistance systems, certain circuits are linked to control units; after replacement, perform a system reset via ignition cycle or diagnostic scanner to restore full functionality.

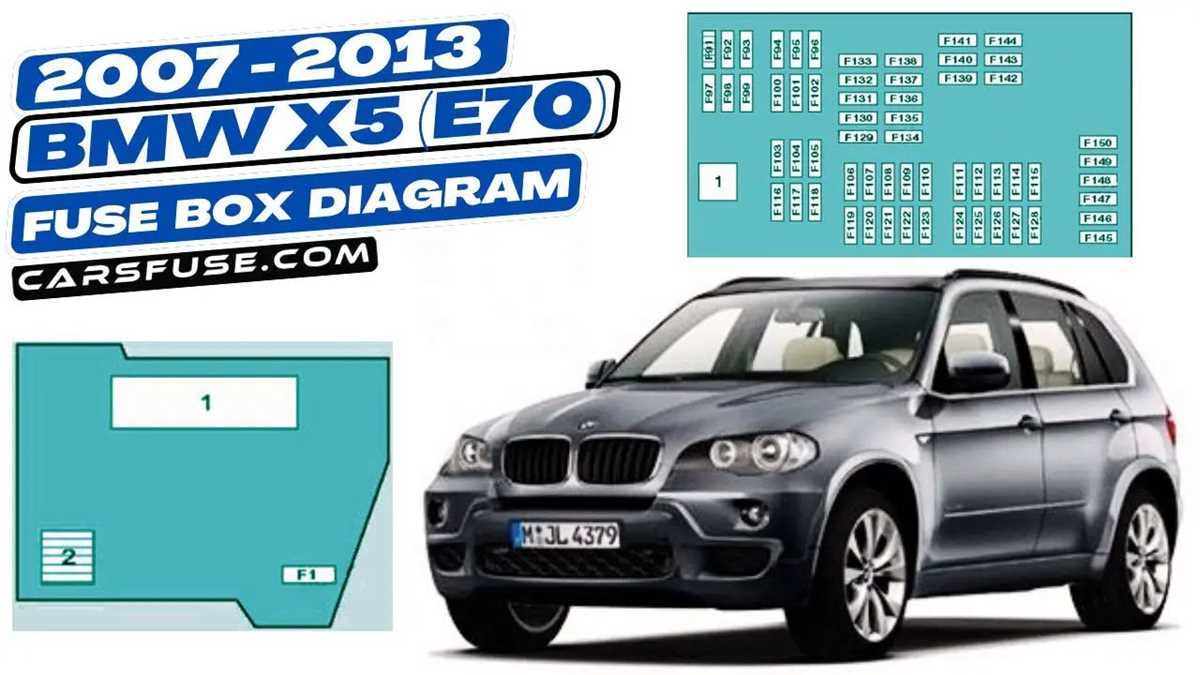

2013 BMW X5 Fuse Box Diagram: Practical Guide
Check the power distribution layout inside the glove compartment first, then verify the rear compartment panel near the battery before replacing any protective link. Use the legend printed on the cover to match circuit numbers with systems like climate control, infotainment, lighting, or starter relay. Always disconnect the negative terminal before accessing the panel to prevent short circuits. Replace only with identical amperage ratings (e.g., 5A, 10A, 20A) to avoid wiring damage. If a component fails repeatedly, inspect the corresponding circuit for insulation wear or moisture intrusion rather than swapping the element again.
- Glove compartment panel: handles interior electronics, dashboard systems, and media unit.
- Rear luggage area panel: supplies power to fuel pump, suspension modules, and rear lighting.
- Engine bay distribution unit: supports high-load systems like cooling fan and ABS.
- Color coding: brown = ground circuits, red = constant power, green = switched ignition lines.
- Puller tool: use the dedicated extractor clipped inside the panel cover to avoid damaging contacts.
- Testing: use a multimeter set to continuity mode instead of visual inspection for reliability.
Exact fuse box locations in 2013 BMW X5 and how to access each compartment safely
Open the glove compartment and remove the lower trim panel to reach the primary electrical panel; press the side tabs inward and let the compartment drop fully, then unclip the protective cover without using excessive force.
This front passenger area unit sits behind a felt-lined panel secured by plastic retainers; use a flat plastic trim tool rather than a metal screwdriver to avoid damaging clips or surrounding surfaces.
A second module is located in the rear cargo area on the right side; lift the floor cover, then pull back the side lining where a rectangular access door is mounted, and rotate its latch counterclockwise to expose the internal circuits.
Before touching anything inside the rear section, disconnect the negative terminal of the battery positioned under the cargo floor; this reduces risk of short circuits while handling components.
Under-hood protection elements are housed near the engine bay’s right side, close to the firewall; release the locking tabs on the plastic casing and raise the lid carefully, keeping moisture and debris away from exposed contacts.
Lighting inside the glove area is powered through a small connector attached to the trim panel; disconnect it gently before removing the panel completely to prevent wire strain.
Use the included plastic tweezers stored within the glove compartment panel for removing individual elements; pulling them by hand can bend terminals or loosen seating, leading to intermittent electrical faults.
After completing any inspection, reseat all covers firmly, ensure each latch clicks into place, and restore battery connection only after verifying that no tools or loose parts remain inside any compartment.
