Check the passenger-side glove compartment panel first, since most electrical protection elements for interior systems are located there, including lighting, infotainment, and control modules.

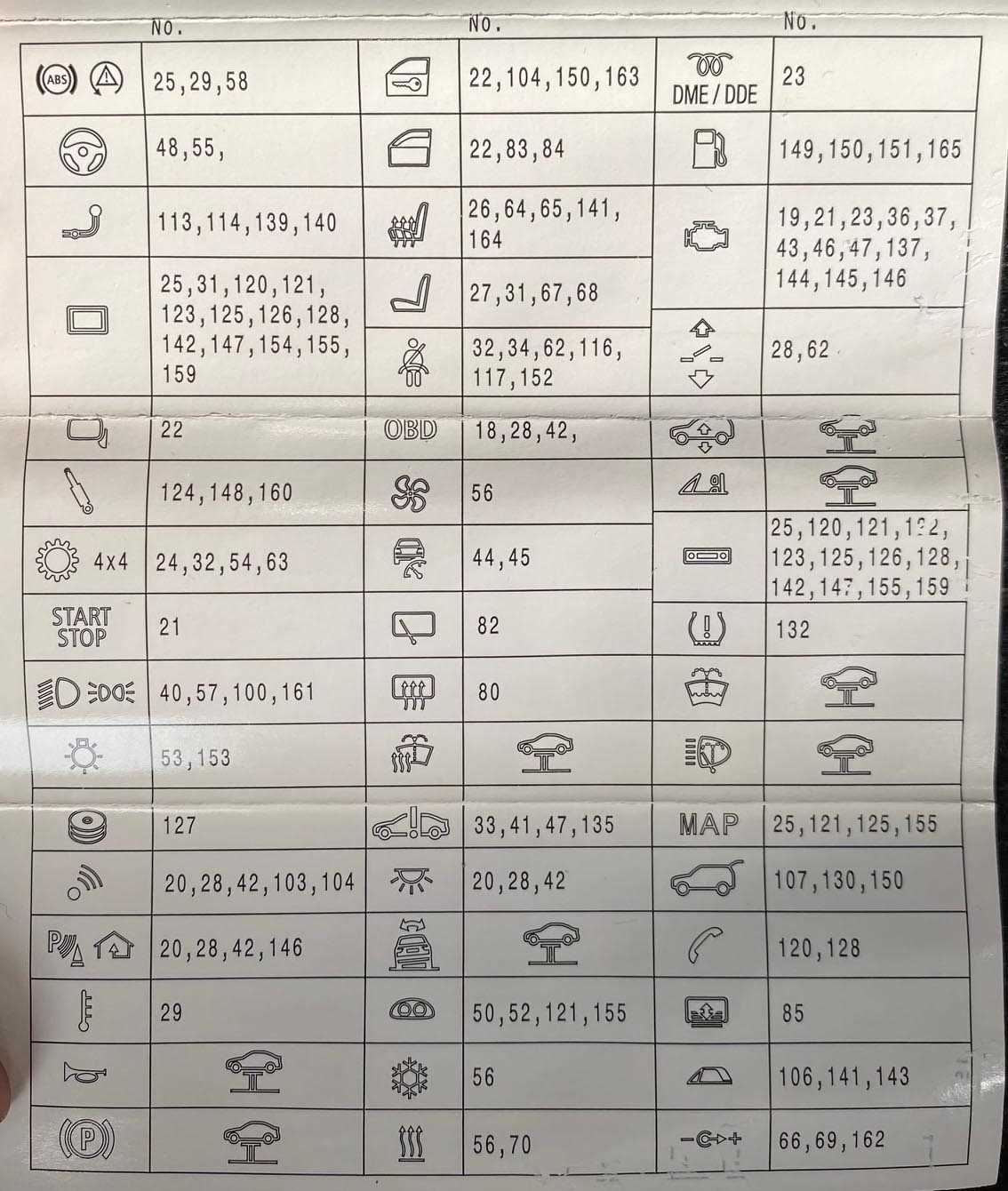

Use the printed layout chart attached to the panel cover to match each slot number with its assigned circuit. This chart typically lists amperage ratings, allowing quick identification of overloaded or failed components. Never install a higher-rated element, as it may lead to wiring damage.
In the engine compartment, locate the power distribution unit near the battery housing. This area handles high-current circuits such as cooling fans, ignition supply, and electronic control units. Access usually requires removing a protective cover secured by clips.
Focus on identifying symptoms like non-working accessories, warning lights, or intermittent power loss. These signs often point to a single blown protective link or relay failure, making targeted inspection faster and reducing unnecessary disassembly.
2013 BMW 328i Fuse Diagram with Panel Layout and Circuit Assignment Guide
Locate the glove compartment panel and match each numbered slot with the printed chart to identify circuits for lighting, infotainment, climate control, and onboard modules.
Typical layout structure groups circuits by function: lower positions handle cabin lighting and accessory power, mid-range slots control audio system, display, and HVAC, while upper rows are assigned to control units, safety systems, and diagnostic interface. Amperage values are printed next to each position, commonly ranging from 5A for sensors up to 30A for high-load components like blower motors.
Under the hood, the power distribution unit contains high-current protection links and relays for ignition supply, cooling fan, and engine management. Always verify both the protective element and paired relay, since many circuits rely on switching components rather than a single protection point.

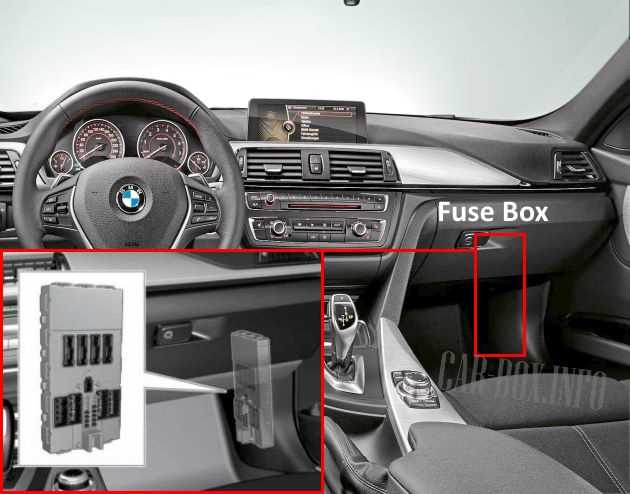

Interior fuse panel location and slot numbering with circuit functions
Open the glove compartment and remove the rear cover panel to access the interior electrical distribution block where all numbered slots and circuit assignments are located.
The numbering system usually follows a sequential format such as F1 through F56, printed directly on the carrier or on the removable cover. Lower index positions are commonly assigned to low-current systems like interior lights, rain sensor, and mirror controls, while mid-range numbers support multimedia, central locking, and climate control modules. Each position includes an amperage label, typically 5A, 10A, 15A, or 20A.
Upper slot numbers often connect to control units, including airbag module, instrument cluster, and communication gateway. These circuits require stable power supply, so even minor damage or incorrect rating can trigger warning lights or system faults across multiple components.
Use the built-in plastic removal tool to extract elements without bending contacts. Always inspect both the metal strip inside the component and the slot terminals for signs of heat damage, discoloration, or looseness, which may indicate overload or poor connection.
Refer to the printed assignment chart for exact function mapping, since configurations may vary depending on installed options such as navigation, heated seats, or advanced driver assistance features.
