The power distribution layout for this E46 coupe can be accurately interpreted by focusing on the compartment behind the glove tray, where most protective links and relays are grouped. Each slot is assigned to a specific subsystem such as lighting, climate control, or engine management, and is marked with numeric identifiers that correspond to a printed reference chart typically attached to the panel cover. Cross-checking these numbers with component functions allows precise fault tracing without dismantling additional interior elements.
For troubleshooting, inspect positions related to ignition coils, fuel delivery, and onboard electronics first, as these circuits commonly cause startup or performance interruptions. The amperage rating of each protective insert is critical: replacing a 15A element with a higher value risks wiring damage, while a lower value may trigger repeated shutdowns. Color coding–for example, blue (15A), yellow (20A), and green (30A)–provides quick visual confirmation during replacement.
Additional distribution points are located in the engine bay near the right strut tower. This secondary panel handles high-load systems like ABS and cooling fans. Moisture exposure and heat cycles in this area often lead to corrosion, so terminals should be checked for oxidation or loose contact. Accurate interpretation of the circuit allocation chart ensures that electrical diagnostics remain targeted and avoids unnecessary component replacement.
2001 BMW 330Ci Fuse Box Diagram: Practical Guide
Check the power distribution layout under the glove compartment first; this coupe places its main circuit panel behind a trim cover secured by two plastic fasteners, and accessing it without removing surrounding panels reduces the risk of broken clips.
The electrical chart for this E46-series vehicle uses numbered slots paired with amperage ratings, where red indicates 10A, blue 15A, yellow 20A, and green 30A; matching the color and number prevents installing an incorrect rating that could damage wiring or connected modules.
Common failure points include circuits linked to the central locking system, interior lighting, and radio unit; if multiple features fail simultaneously, inspect shared lines rather than testing each component separately, saving time and avoiding unnecessary disassembly.
Position references matter: slots 7 through 12 typically handle cabin electronics, while higher positions often correspond to engine-related systems; using this grouping helps narrow troubleshooting without scanning the entire panel.
Access and Replacement Tips
Use a plastic puller stored inside the panel cover to remove a blown element cleanly; metal tools can slip and cause short circuits. Always turn off ignition and remove the key before touching contacts, as some circuits remain live even when the vehicle is parked.
Reading the Layout Sheet
The legend sheet attached to the cover lists functions in abbreviated form such as “IHKA” for climate control or “DME” for engine management; cross-referencing these codes with a service manual avoids confusion when labels appear unclear.
Consistent inspection every few months helps identify early signs of overheating like melted plastic or discoloration around terminals; replacing a worn element early prevents cascading electrical issues that can affect multiple systems.
Exact Location of Electrical Panel Units and Safe Access Procedure

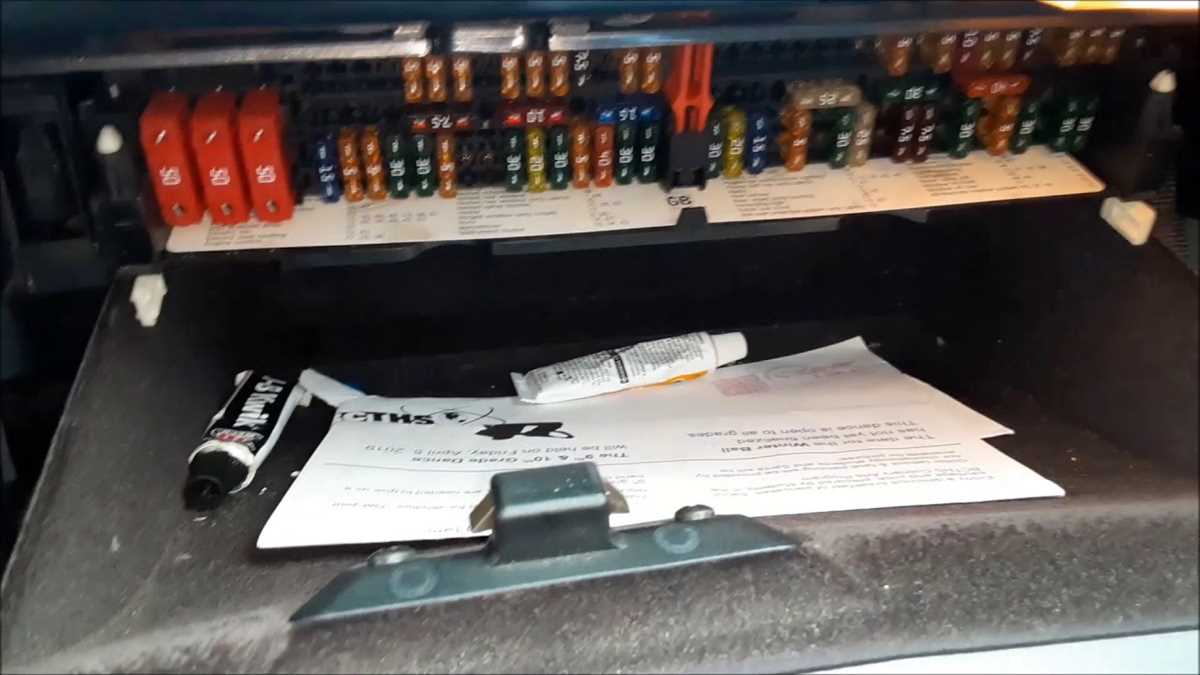

Open the glove compartment and look upward to find the primary electrical panel mounted behind a trim cover; release the two plastic latches on the upper edge, then lower the panel door carefully without forcing it, as the hinges are prone to cracking under uneven pressure.
The secondary unit is positioned in the engine compartment on the passenger side near the firewall; remove the protective plastic housing by rotating the quarter-turn fasteners, keeping the cover level to avoid dislodging the sealing gasket that prevents moisture intrusion.
Before touching any internal component, disconnect the negative terminal of the battery located in the trunk on the right side under the floor panel; use a 10 mm wrench and isolate the cable to prevent accidental reconnection.
Access inside the cabin requires sufficient lighting due to the recessed mounting angle; use a narrow-beam flashlight and avoid pulling wiring harnesses, as the connectors are tightly routed and can loosen with minimal force.
Interior Access Steps
- Fully open the glove compartment to its lowest stop
- Identify and release both retaining clips simultaneously
- Support the panel while lowering to prevent hinge stress
- Locate the reference chart attached to the backside of the cover
In the engine bay, ensure the ignition is off and the engine is cool; heat exposure increases the risk of burns and can soften plastic mounts, making them easier to deform during removal.
Engine Compartment Access Steps
- Stand on the passenger side and locate the rectangular housing near the windshield base
- Rotate each fastener 90 degrees counterclockwise
- Lift the cover evenly from both sides
- Inspect the rubber seal before reinstallation
Never replace a blown element with a higher-rated one; mismatched ratings can overload circuits and damage control modules distributed throughout the vehicle’s electrical network.
After completing work, restore all covers securely and reconnect the battery terminal firmly; test key systems such as lighting and climate control immediately to confirm proper restoration of power distribution.
